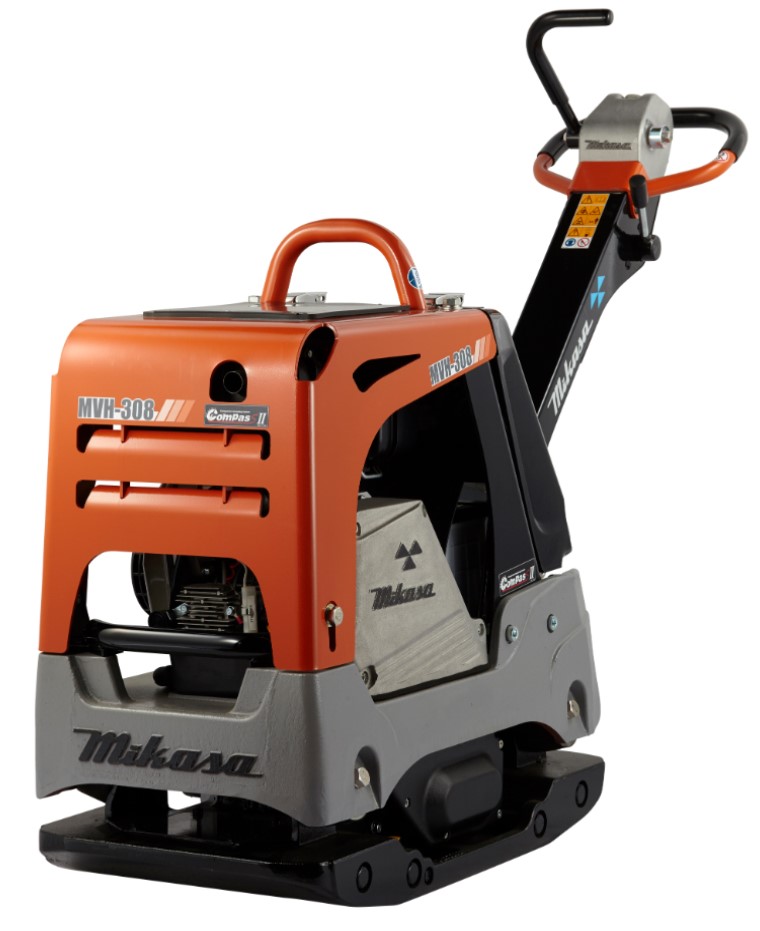

Mikasa Plate Compactor Reversible Diesel 6.7HP 341kg (MVH-308D)


Mikasa Reversible Plate Compactors are ideal for the efficient compaction of sand, gravel and cohesive soils in trenches and large construction
projects. They offer high compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They
are ideally suited for civil construction works, drainage contractors and the rental industry.


Model: MVH-308D
Engine: Yanmar L70N
Max Rated Power: 6.7Hp
Fuel: Diesel
Plate Size: 445mm x 860mm
Plate Size with extension plates: 595mm x 860mm
Centrifugal Force (Max): 45kN
Vibration Frequency: 4,400VPM
Max Travel Speed: 27m/min
Max Gradeability: 35%
Max Compacted Area: 963m²/h
Average HAV: 2.9m/s²
Operating Weight: 341kg
Operating Weight With Extension Plates: 361kg
