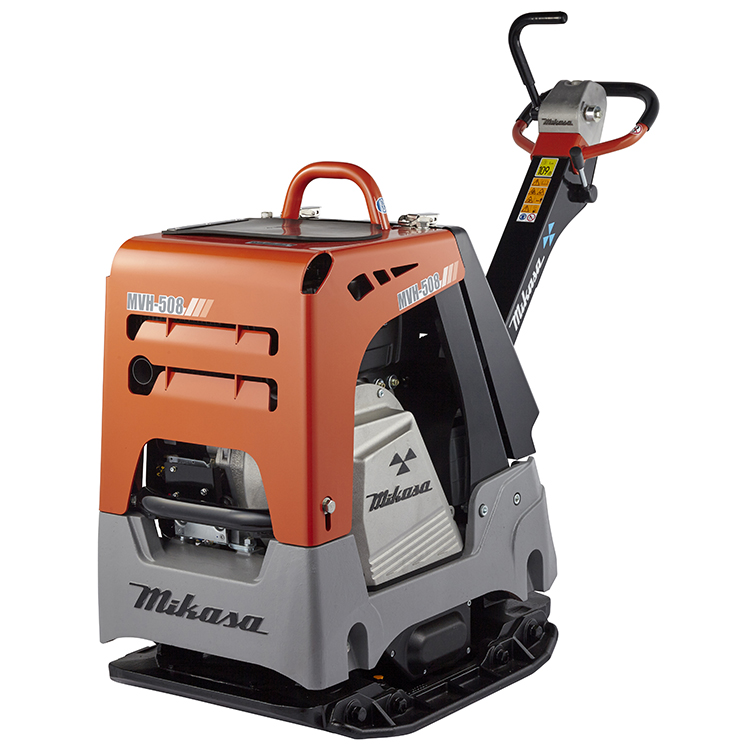

Mikasa Plate Compactor Reversible Diesel 14.1HP 525kg (MVH-508)


Mikasa Reversible Plate Compactors are ideal for the efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They are ideally suited for civil construction works, drainage contractors and the rental industry.


Model: MVH-508
Engine: Hatz 1D81S
Max Rated Power: 14.1Hp
Fuel: Diesel
Plate Size: 650mm x 900mm
Plate Size With Extensions: 800mm x 900mm
Centrifugal Force (Max): 65kN
Vibration Frequency: 4150VPM
Max Travel Speed: 29m/min
Max Gradeability: 35%
Max Compacted Area: 1392m²/h
Average HAV: 5.5m/s²
Operating Weight Without extension plates: 525kg
Operating Weight With extension plates: 567kg

SKU: FT28DSZN-UNIT Categories: , ,
